Manufacturers and Suppliers of Quality Farm Implements
|
Ploughs
Manufacturers and suppliers of mounted disc plough, agricultural tractor blade. Backed by our dexterous workforce, we bring an array of ploughs. Our ploughs mounted disc plough and M.B. plough are fabricated using premium grade raw material from latest technology machines. These ploughs have special wear resistant steel bottoms with bar points for toughest ploughing jobs. Available in standard as well as customized options, our range of ploughs have special corrosion resistant and wear-resistant steel bottoms.
Mould Board Plough
Our sturdy M.B. Plough can handle the toughest ploughing job with outstanding penetration performance. These ploughs are specially designed by our experienced experts so that they can be mounted on the tractor directly with ease.
Mould Board Plough Reversible
Features:
- It can handle the toughest ploughing job with outstanding performance. The under frame and unit clearances are adequate to cope with trashy conditions. Perfect alignment at the plough beams carrying the Mould Board bottom is maintained by virtue of the frame construction. The Mould Board will work in any kind of soil whether it’s tougher or simpler. The plough has special wear resistant steel bottoms with bar points for toughest ploughing jobs. Bar pointing bottom it really ensures the longer life.
| SPECIFICATION |
KKMBP-2 FURROW |
KKMBP-3FURROW |
| Plough Share (mm) |
10T |
| Mould Board |
8T |
| Tyne |
80x36 (3.1x1.4") |
| Bar Point (mm / Inch) |
100x15 (3.9") Forged |
| Mechanism |
Hydraulic |
| Width of Cut (mm / Inch) |
700 (27.5") |
1050 (41.3") |
| Safety |
Shear Bolt |
| Weight Approx (Kg) |
460 |
635 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |
Features:
- It can handle the toughest ploughing job with outstanding performance. The under frame and unit clearances are adequate to cope with trashy conditions. Perfect alignment at the plough beams carrying the Mould Board bottom is maintained by virtue of the frame construction. The Mould Board will work in any kind of soil whether it’s tougher or simpler. The plough has special wear resistant steel bottoms with bar points for toughest ploughing jobs. Bar pointing bottom it really ensures the longer life.
| SPECIFICATION |
KKMBP-2 FURROW |
KKMBP-3FURROW |
KKMBP-4 FURROW |
| Frame (mm) |
Square Tubular Frame |
| Frame Width (mm / Inch) |
1300 (51") |
1880 (74") |
2460 (97") |
| Height (mm / Inch) |
1066 (42") |
| Blade (mm) |
10mm Thickness |
| Mould Board |
8mm Thickness |
| Tyne |
36mm Single Profile Cut |
| Bar Point (mm / Inch) |
40x25 (1.5"x1") (Bar Forged) |
| Width of Cut (mm / Inch) |
710 (28") |
1010 (38") |
1310 (51.5") |
| 3 Point linkage & Connecting Rod |
65x16 Flat & 30x30 Solid Square |
| Drawbar (mm / Inch) |
50x50 (2"x2") Square Bar |
| Weight Approx (Kg) |
218 |
328 |
433 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |

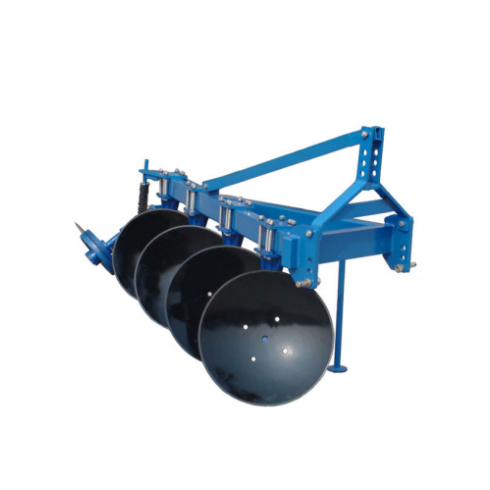

Mounted Disc Plough
Our mounted disc ploughs are designed to work in all types of soil for basic functions such as soil breaking, soil turning and soil raising. They are made of forged alloy steel and are heat treated to work efficiently in hard and dry trashy land conditions.
Mounted Disc Plough Heavy Duty
Features:
- It is used to open the new fields and to process the stony areas.
- It is being produced with 2-3-4 and 5 bottoms with an option for extra kit for furrow addition.
- The disc plough is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing.
- It can be used easily at rocky and rooted areas.
- Extra heavy-duty pipe frame has high trash clearance allowing the plough to operate despite heavy crop residue.
| SPECIFICATION |
KKMDPHD-2 |
KKMDPHD-3 |
KKMDPHD-4 |
KKMDPHD-5 |
| Frame |
Seamless Pipe |
| Drawbar |
Hexagonal |
| Axle Type |
Forged Spindle |
| No. of Disc |
2 |
3 |
4 |
5 |
| Type of Disc |
Notched & Plain (as per requirement) |
| Disc Diameter (mm / Inch) |
660x6T (26") |
| Disc Spacing (mm / Inch) |
560 (22") |
| No. of Bearing Hubs |
2 |
3 |
4 |
5 |
| Width of Cut (mm Approx.) |
500-550 |
875-925 |
1150-1200 |
1575-1625 |
| Mounted Category |
CAT-II |
| Weight Approx (Kg) |
310 |
415 |
510 |
620 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |

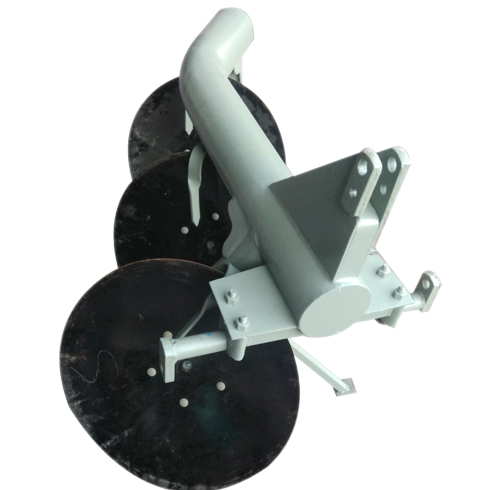

Mounted Disc Plough Light Duty
Features:
- It is used to open the new fields and to process the stony areas.
- The disc plough is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing.
- It can be used easily at rocky and rooted areas.
- Extra heavy-duty pipe frame has high trash clearance allowing the plough to operate despite heavy crop residue.
| SPECIFICATION |
KKMDLD-2 |
KKMDPLD-3 |
| Frame |
Seamless Pipe |
| Drawbar |
45mm Round |
| Axle Type |
Forged Spindle |
| No. of Disc |
2 |
3 |
| Type of Disc |
Plain |
| Disc Diameter (mm / Inch) |
660x4T (26") |
| Disc Spacing (mm / Inch) |
483 (19") |
| No. of Bearing Hubs |
2 |
3 |
| Mounted Category |
CAT-II |
| Weight Approx (Kg) |
215 |
290 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |
Features:
- It is used to open the new fields and to process the stony areas.
- It is being produced with 2-3-4 and 5 bottoms with an option for extra kit for furrow addition.
- The disc plough is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing.
- It can be used easily at rocky and rooted areas.
- Extra heavy-duty pipe frame has high trash clearance allowing the plough to operate despite heavy crop residue.
| SPECIFICATION |
KKMDPD-2 |
KKMDPD-3 |
KKMDPD-4 |
KKMDPD-5 |
| Frame |
Tubular Frame |
| Pull Type |
Mounted |
| Leg Support (mm) |
75x35 (Flat) |
| No. of Disc |
2 |
3 |
4 |
5 |
| Type of Disc |
Plain Disc |
| Disc Diameter (mm / Inch) |
660x6T (26") |
| Disc Spacing |
Adjustable |
| No. of Bearing Hubs |
2 |
3 |
4 |
5 |
| Working Depth (mm Approx.) |
500-550 |
875-925 |
1150-1200 |
1575-1625 |
| Mounted Category |
CAT-II |
| Weight Approx (Kg) |
290 |
390 |
475 |
585 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |
