Disc Ridger
Disc Ridger is a tractor mounted basic implement to make ridges in the agriculture land. Available in two type (single row & double row).
Features:
- Due to its adjustable system it helps in producing the ridges with the maximum width of 1000 mm
- The Disc Hubs are of special design which protects the bearing from water and can be easily operated in each and every type of Soil.
- It is available in 2 Discs.
- It has heavy duty Tubular Frame.
| SPECIFICATION |
KKDRSR |
| Frame (mm) |
72x72x6 Box With 75x40x6 Channel |
| No. of Disc |
2 |
| Type of Disc |
Plain |
| Disc Diameter (mm/ Inches) |
660x6 (26") |
| Working Depth (mm) |
300 |
| Weight Approx (Kg) |
195 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |

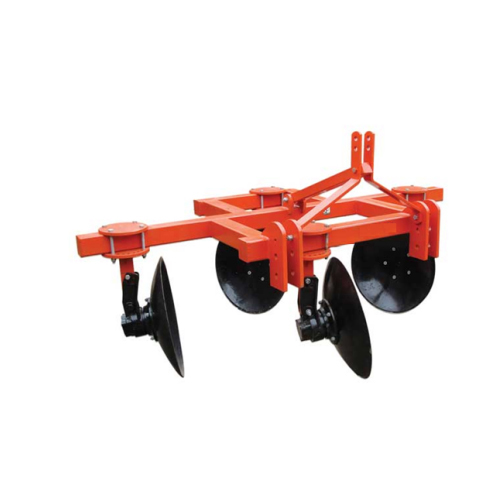

Features:
- Due to its adjustable system it helps in producing the ridges with the maximum width of 1000 mm
- The Disc Hubs are of special design which protects the bearing from water and can be easily operated in each and every type of Soil.
- It is available in 2 Discs as well as 4 Discs which makes one ridges and two ridges respectively.
- It has heavy duty Tubular Frame.
| SPECIFICATION |
KKDRDR |
| Frame (mm) |
Square Tubular Frame |
| No. of Disc |
4 |
| Type of Disc |
Notched & Plane (As Per Customer Requirement) |
| Disc Diameter (mm/ Inches) |
660x6 (26") |
| Working Depth (mm) |
300 |
| Weight Approx (Kg) |
400 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |

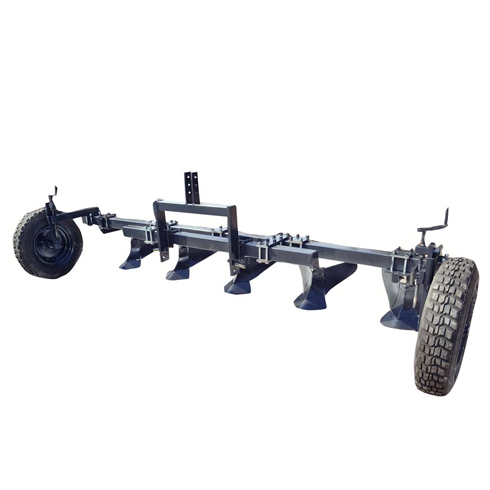

Features:
- Adjustable Furrow Assembly.
- Heavy Duty Box Frame.
- Tyne Thickness 25mm.
- Depth of the Disc Ridger can be adjustment with side tyres.
- This Disc Ridger is specially made for african continent.
- Easy For Transportation.
| SPECIFICATION |
KKTYHD-3 |
KKTYHD-4 |
KKTYHD-5 |
KKTYHD-6 |
| Frame (mm) |
Tubular Frame |
| No. of Tynes |
3 |
4 |
5 |
6 |
| No. of Furrow |
6 |
8 |
10 |
12 |
| Tyne (mm) |
25 Single Profile Cut |
| Blade (mm) |
7 |
| 3 Point Linkage |
CAT I/II |
| No. of Tyre |
2 (7.5x16) |
| Weight Approx (Kg) |
390 |
465 |
540 |
620 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |

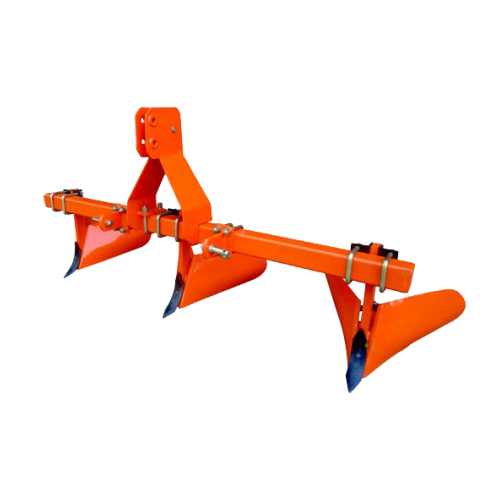

Features:
- Adjustable Furrow Assembly.
- Heavy Duty Box Frame.
- Tyne Thickness 32mm.
| SPECIFICATION |
KKTR-3 |
| Frame (mm) |
100x100x6 (Heavy Duty Box Frame) |
| No. of Tynes |
3 |
| No. of Furrow |
6 |
| Angle Bracket |
75x10 |
| Shovel |
2 Hole |
| 3 Point Linkage (mm) |
65x16 Front , 50x16 Rear |
| Weight Approx (Kg) |
195 |
| Required (HP) |
40-55 |
|
|
|
*The company reserves absolute rights to modify the specification of machine and components therein without any prior notice.
|
| |
