- Single or Double Axle- as per Requirement

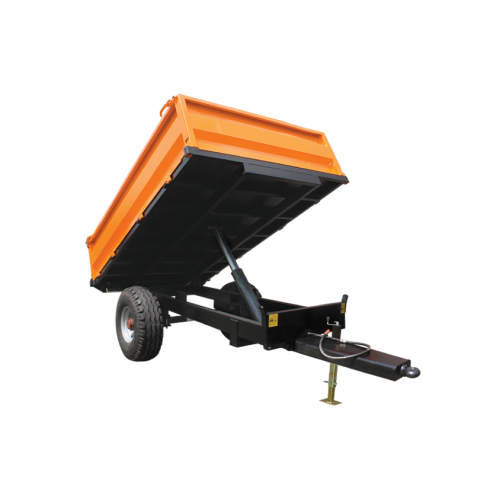

- MODELS- Capacity-3 / 5 / 7 /10 /15 / 20 tons Tipping trailer
- Rugged construction for general use in transporting agricultural
inputs and harvests from farms.
- Drop side loading / unloading and tipping type
- Provided with hydraulic system of towing tractor to be operated
through
- Oil pressure of Gear box
- Heavy duty drawbar with an eye hitch together
- Side doors hinged removable type while the rear doors are hinged
top or bottom for Easy tipping.
- Rear axle be of box/square section and rigidly bolted on the
chassis.
- Hand Operated brake system.(Optional)
- Tires - tube for 3 Tons- 7.50x16(Single); for 5 Tons-
7.50x16(Double); for 7 Tons- 9.00x16(Double); for 10 Tons-
9.00x20(Double); for 15 Tons- 1000x20(Double)
- OR AS PER CUSTOMER REQUIREMENT OF TYRES. (ANY STANDARD MADE).
- Standard tools for serving a trailer will be provided including
hydraulics of tipping trailer, jack and wheel spanners. (Optional)
- Lights: sidelights, brake lights, Direction indicators,
Provision for fixing number plates with lighting. (Optional)
- Left and Right-hand Reflectors fixed at the rear door of the
trailer. (Optional)
|
 |
